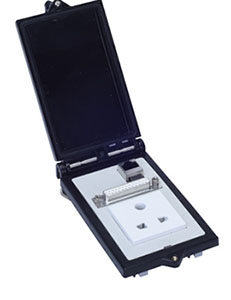

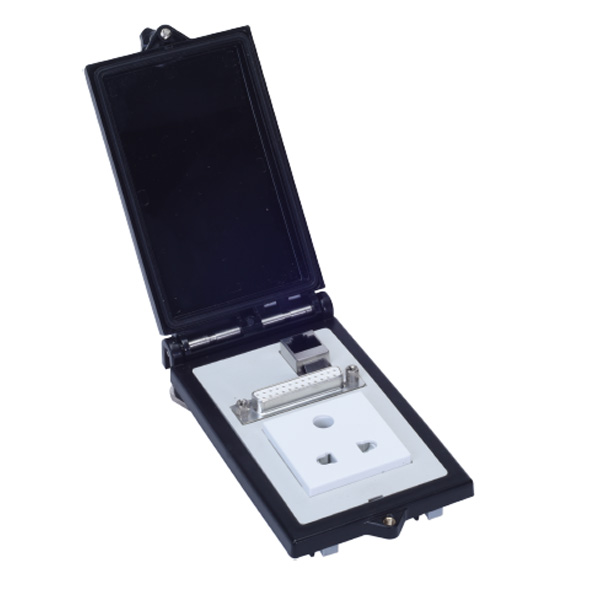

Front Panel Interface Unit

Technical Data

Data Connector	Plug Connector SUB-D
Max. Nominal Voltage	125V AC / 150V DC
Max. Nominal Current	3 A
Max. Wire Diameter	20 / 0.05 mm2

Plug Socket	Universal Socket
Max. Nominal Voltage	250 V AC
Max. Nominal Current	6 A, 13 A & 16 A
Max. Wire Diameter	Screw Terminals

Frame
Material	Polyamide
Dimension (outside) FPIU LS	113 x 65 x 17 mm
FPIU MS	92 x 70 x 12 mm
FPIU SS	100 x 41 x 13 mm
FPIU CB	135 X 75 X 18 MM

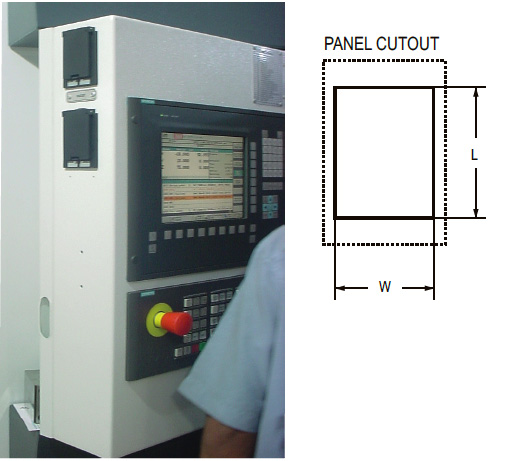

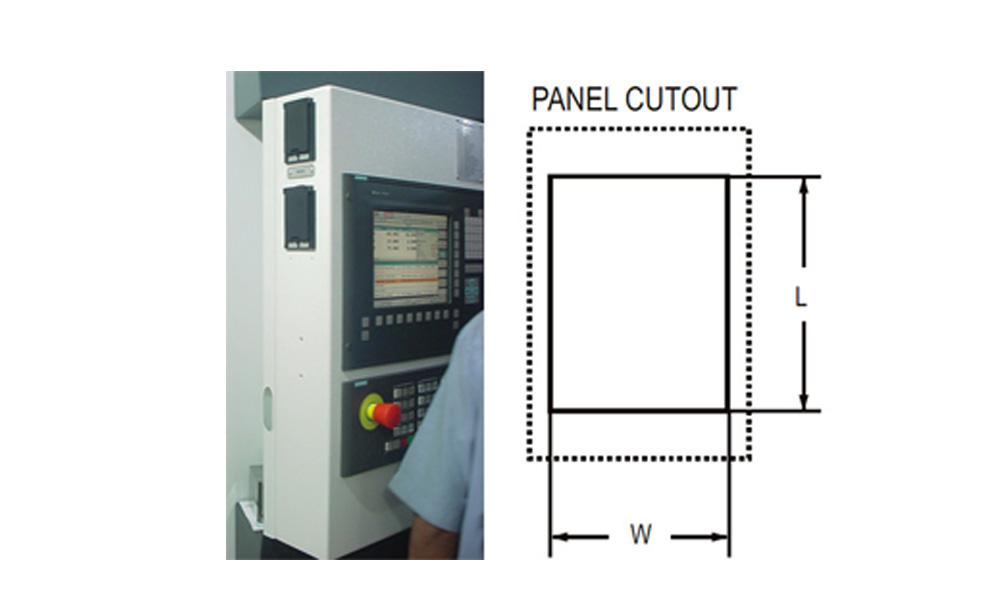

Panel Cut out FPIU LS _{L x W}	95 x 56 mm
FPIU MS _{L x W}	63 x 57 mm
FPIU SS _{L x W}	63 x 29 mm
FPIU CB _{L x W}	105 X 66 MM
Suitable to wall thickness	1 to 3 mm

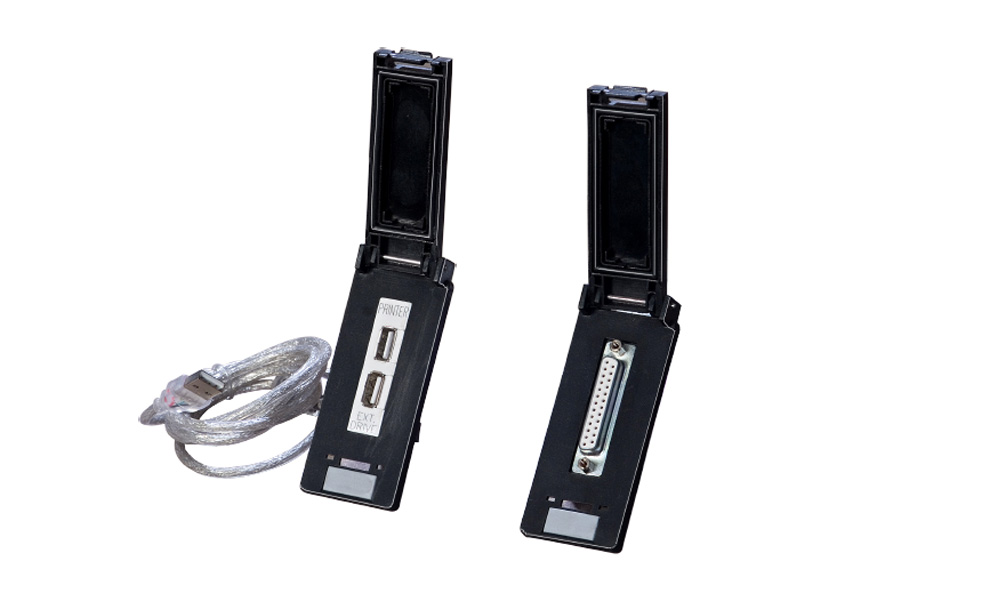

FPIU SS

Add To Inquiry Cart Download

DESCRIPTION	PART NO.
Data Connector Soldering type
With 2 Nos. of 2 Ft. USB Cable	011 0000 4C53
With 25 PIn Female Connector	011 2500 4S03
Panel Cutout - 64 X 29

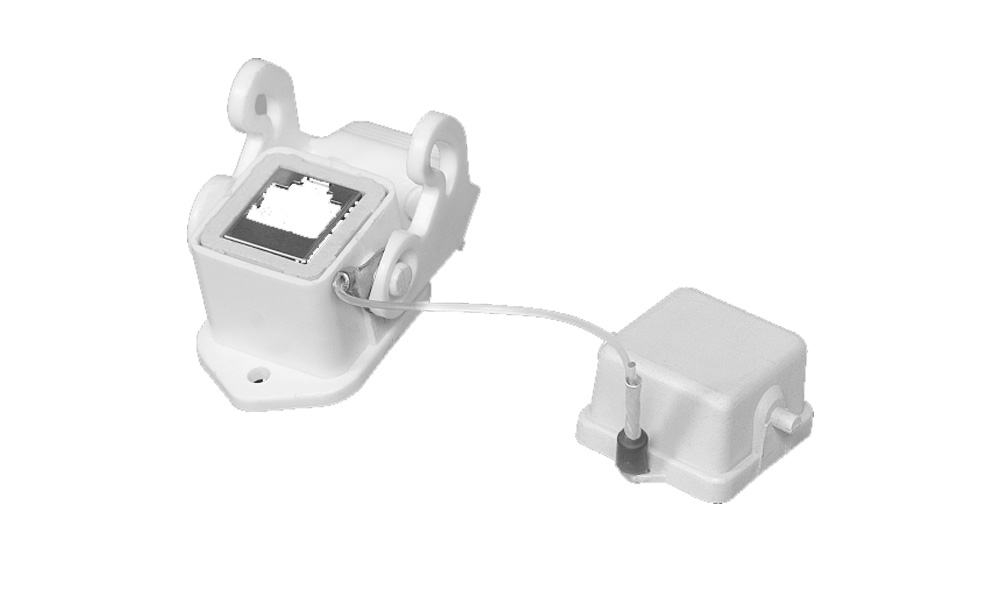

FPIU

Add To Inquiry Cart

DESCRIPTION	PART NO.
RJ 45 Connector 8 Pin Metal CAT5e, Gender Changer Fitted in 3 Pin Housing with Protective Cover	014 0000 0G13
Panel Cutout - 22 X 22

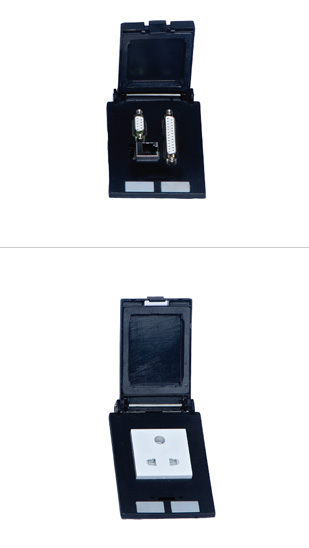

FPIU MS

Add To Inquiry Cart

DESCRIPTION	PART NO.
Data Connector Soldering type
With 9 Pin Female Connector	012 9000 4S03
With 9 Pin Male Connector	012 9000 3S03
With 25 Pin Female & Blind Strip	012 2500 4S03
With 9 Pin Femael & 25 Pin Female Connector	012 2590 4S03
With 09 Pin Female & RJ45 Connector 8 Pin Metal CAT 5e	012 9000 4S13
With 25 Pin Female & RJ45 Connector 8 Pin Metal CAT5e	012 2500 4S13
With 9 Pin Female , 25 Pin Female Connector& RJ 45 8 Pin Metal CAT5e	012 2590 4S13
With 9 Pin & 25 Pin Male Connector	012 2590 3S03
With 1 USB/ 9 Pin Female & RJ45 Connector	012 9000 4S23
With 25 Pin female & 9 Pin Male Connector	012 2590 2S03
With 25 Pin Female & 25 Pin Male Insert	012 2525 2S03
With9 Pin Female & 9 Pin Male Connector	012 9090 2S03
with15 Pin Female & 9 Pin Male Connector	012 1590 2503
Plug Socket
with 3 Pin Universal Socket 6A 250V	012 0000 0000
with 3 Pin Universal Socket 13A 250V	012 0000 0004

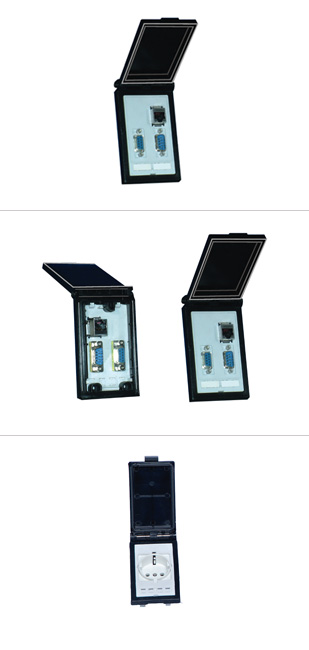

FPIU LS

Add To Inquiry Cart

DESCRIPTION	PART NO.
Data Connector soldering type & Gender Changer
With 25 Pin Female	013 2500 4S03
With 09 Pin Female	013 2500 4S03
With 09 Pin & 25 PIn Female Connector	013 2590 4S03
With 09 Pin Male, 9 Pin Female and RJ45 connector 8 pin Metal CAT5e Gender Changer	013 9090 2S13
With 25 Pin Female /Female & 9 Pin Female/ Female Gender Changer & RJ45 Connector 8 Pin Metal CAT 5e, Gender Changer	013 2590 4G13
With 9 Pin Female/ Female Gender Changer& RJ45 Connector 8 Pin Metal CAT 5e, Gender Changer	013 9000 4G13
With 25 Pin Female/ Female Gender Changer& RJ45 Connector 8 Pin Metal CAT 5e, Gender Changer	013 2500 4G13
With 25 Pin Female /Female & 9 Pin Female/ Female Gender Changer	013 2590 4G03
With 09 Pin Female, RJ45 Connector 8 Pin Metal CAT 5e and 2 USB with 2 Mts. Cable	013 9000 4S33
With 09 Pin Female & RJ45 Connector 8 Pin Metal CAT 5e, Gender Changer	013 9000 4S13
With 09 Pin Female / Female Gender Changer	013 9000 4G03
with RJ45/ 2USB with cable/ 15 Pin Female Gender Changer	013 1500 4G30
Plug Socket
with 3 Pin Universal Socket 6A 250V	013 0000 0000
with 3 Pin German Socket 16 A 250V	013 0000 0001
with 3 Pin Universal Socket 13 A 250V	013 0000 0004

FPIU CB

Add To Inquiry Cart

DESCRIPTION	PART NO.
Data Connector Soldering type
With 9 Pin Female / RJ45 / 3 Pin Socket (6A 250V)	035 9000 4S10
With 9 Pin Female / RJ45 / 3 Pin Socket (13A 250V)	035 9000 4S14
With 25 Pin Female / RJ45 / 3 Pin Socket (6A 250V)	035 2500 4S10
With 25 Pin Female / RJ45 / 3 Pin Socket (13A 250V)	035 2500 4S14
With USB(with cable) / RJ45 / 3 Pin Socket (6A 250V)	035 0000 0G24
With USB(with cable) / RJ45 / 3 Pin Socket (13A 250V)	035 0000 0G20
With Four Rj45	035 0000 0G63
