Material : Polyamide
Sealing : Nylon and NBR
Degree of protection : IP65
Temperature range : -40°C...+100°C, short-term120°C

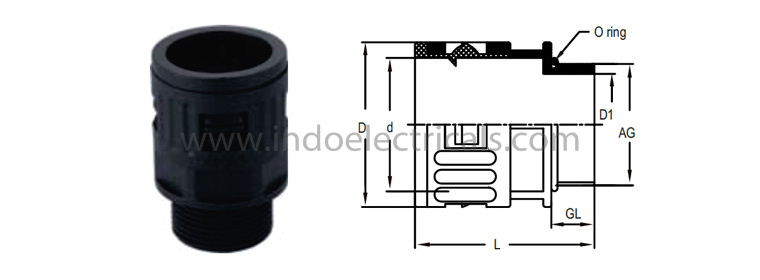

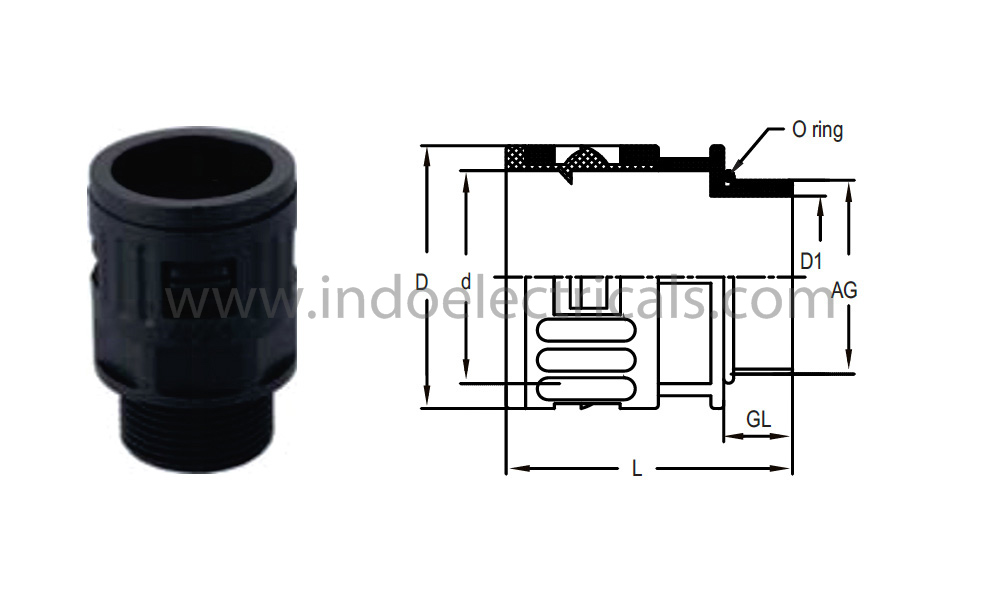

Thread size	Fits to tubing size(d)	Thread length (GL)	Bore(D1)	External diameter (D)	Total length (L)	Part No.
PG Thread
PG7	AD10.0	9.5	7.5	17.0	34.5	1000 FCG P101
PG9	AD13.0	9.5	11.5	20.0	34.5	1000 FCG P102
PG11	AD15.8	9.5	14.0	23.0	36.0	1000 FCG P103
PG13.5	AD18.5	11.0	16.0	26.0	39.0	1000 FCG P104
PG16	AD21.2	13.0	18.0	29.5	44.0	1000 FCG P105
PG21	AD28.5	13.0	23.5	37.0	47.0	1000 FCG P106
PG29	AD34.5	11.5	30.5	43.5	47.5	1000 FCG P107
PG36	AD42.5	13.5	40.0	51.0	52.0	1000 FCG P108
Metric Thread
M12x1.5	AD10.0	1.0	8.0	17.0	34.5	1000 FCG P207
M16x1.5	AD13.0	9.5	11.5	20.0	34.5	1000 FCG P208
M20x1.5	AD18.5	11.0	16.0	26.0	39.0	1000 FCG P200
M20x1.5	AD21.2	13.0	15.0	29.5	44.0	1000 FCG P210
M25x1.5	AD21.2	13.0	18.0	29.5	44.5	1000 FCG P201
M25x1.5	AD28.5	13.0	20.5	37.0	47.0	1000 FCG P211
M32x1.5	AD28.5	13.0	24.0	37.0	47.0	1000 FCG P202
M40x1.5	AD34.5	11.0	30.0	43.5	48.0	1000 FCG P203
M40x1.5	AD42.5	13.5	33.5	51.0	52.0	1000 FCG P213
M50x1.5	AD54.5	13.5	42.5	63.5	53.5	1000 FCG P204
M63x1.5	AD54.5	14.0	55.0	63.5	53.5	1000 FCG P205
